SOS GPS Tracker for Person Q20 4G+2G
Q20 is a latest generation new portable GPS tracker designed for kids, elders, employees, lone workers, dementia and valuable asset tracking. It keeps a good balance between size and battery working life. The working time is up to 4 days at every 5 minutes tracking time interval. Q20 has passed IP67 waterproof standard, which is suitable for outdoor activities. With built-in microphone and speaker, This device supports two-way communication between the user and the preset SOS phone guardian. Powered by the built-in 6-axis motion sensor and excellent firmware algorithm, the device is able to detect the Tilt/Man down/Fall down events accurately.
4G SOS GPS Tracker for Person Protection
– Big SOS button for emergency rescued
– Mini size for Elder, Child, Lone worker, Employees etc
– Fall down / Man down / Tilt alarm
– 4G LTE + 3G CDMA + 2G GSM network for GPS tracking
– Two ways voice communication / Voice monitoring
Feature:
-
Excellent design for easy portable
-
Real time position tracking via 4G LTE and GPRS
-
Historical route from Web GPS platform or APP
-
WiFi+LBS locating
-
Call button for phone call direct
-
6-axis motion sensor and vibration motor
-
4MB (Buffer storage: GPRS 8000 PCS, SMS 400 PCS)
-
SMS for Google map link position
-
Various of alarm modes and call ways
-
Alarm SMS Head String and GPS heartbeat interval
-
Geo-fence alarm / Low battery alarm
-
Flexible settings for SOS and call button
-
Waterproof IP67
-
Docking station charging
-
Rechargeable 1000 mAh battery for long standby
-
Black, Blue, Pink, White and Green color optional

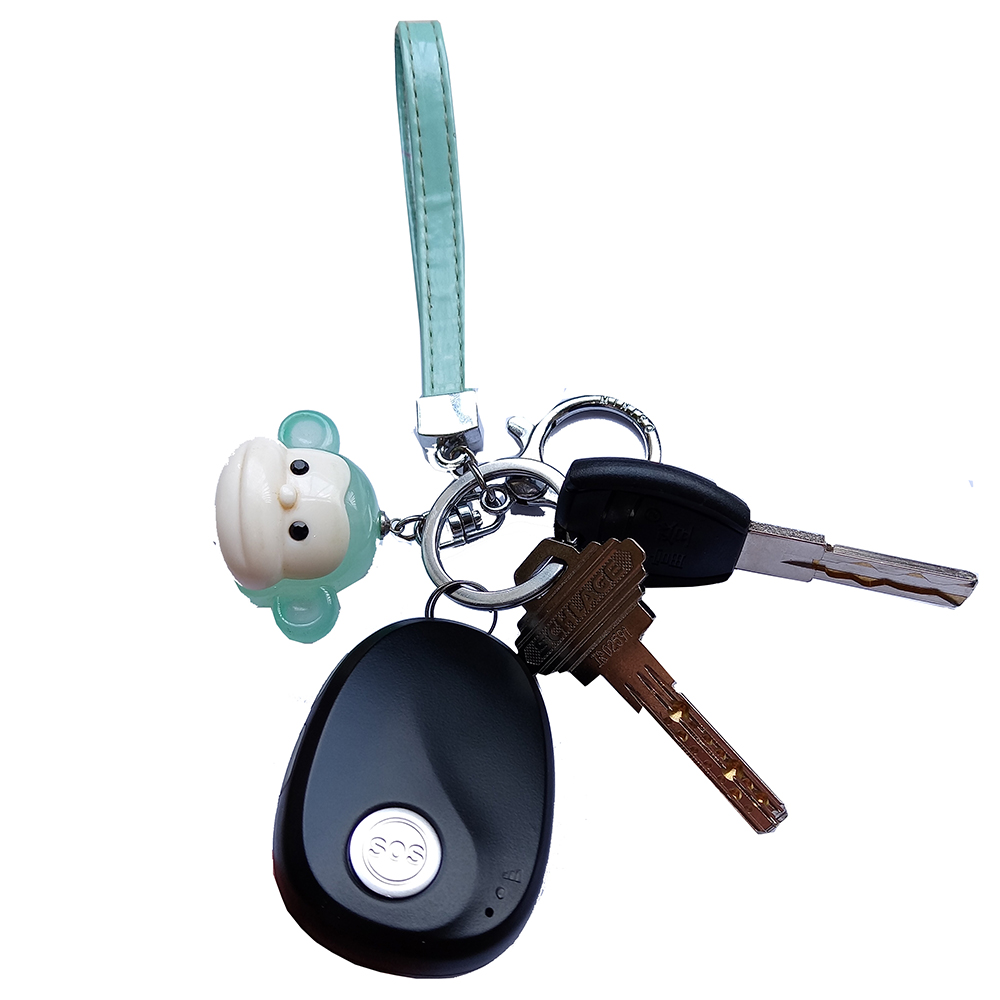

![GPS Tracker on Keychain]

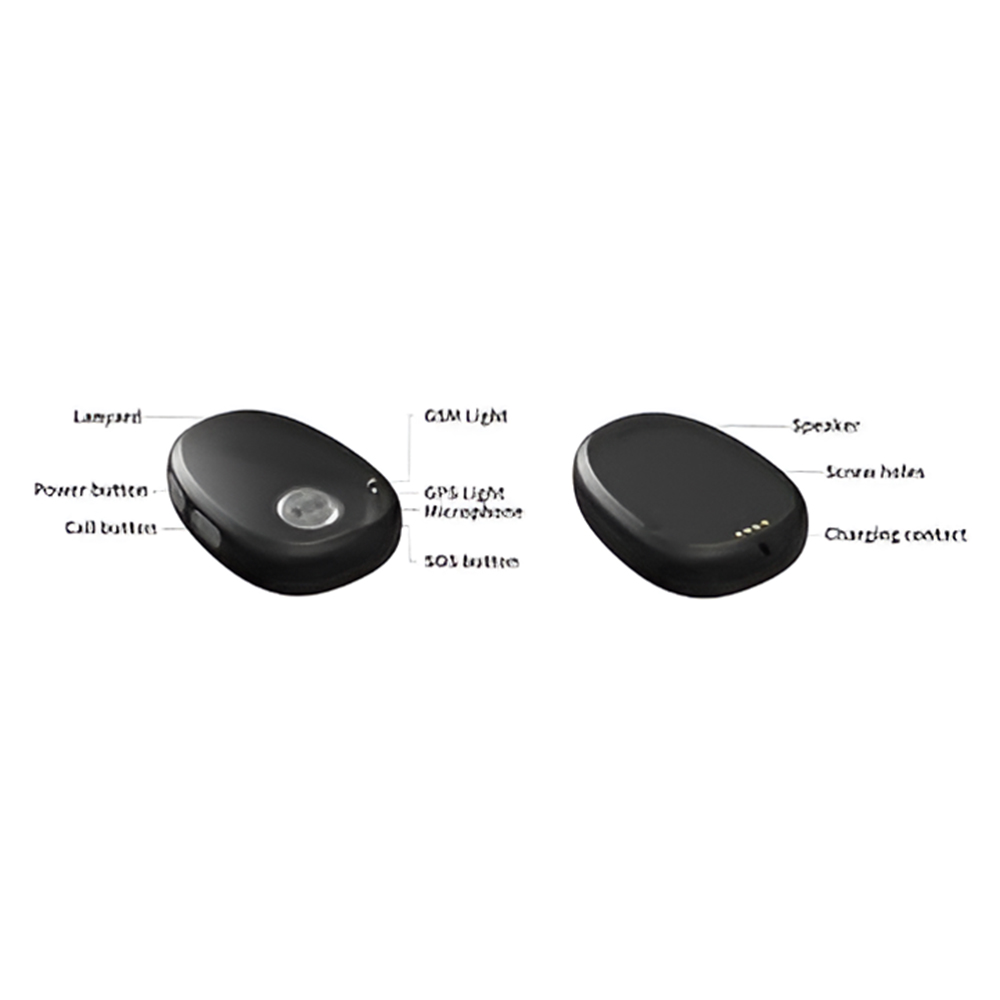

Parts Labeled:
-
Lanyard
-
GSM Light
-
Speaker
-
Power button
-
GPS Light
-
Screw holes
-
Call button
-
Microphone
-
Charging contact
-
SOS button
Device Diagrams Front & Back
Specification:
| Items | Descriptions |
|---|---|
| Dimension | 654617mm |
| Weight | 48g |
| GSM Module | SIMCOM7500 |
| GPS Module | U-blox EVA-M8Q |
| Charging Voltage | DC 5V/1A |
| Internal Battery | 1000mAh/3.7V Lithium ion battery |
| Full charging time | <2 hours 10 minutes |
| Power Consumption | Average 2.4mA standby current |
| Working hours | 5 minutes time interval: 4 days 11 hours |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
| Operating Temperature | -20°C~70°C |
| Humidity | 5%~95% |
| Waterproof | IP67 (Testing condition: Immersed in 20cm depth water for 30 minutes) |
| LED Light | 2 LED lights indicate GPS/GSM/Power status |
| Button/Switch | SOS button, 1 power button, 1 call button |
| Flash Memory | 4MB (Buffer storage: GPRS 8000 units, SMS 400 units) |
| Motion Sensor | 6-axis motion sensor |
| Vibration motor | Built-in vibration reminder incoming call/button press |
| WiFi | 802.11 n (2.4 GHz) |
| Frequency Band (Regions) | Asia, Europe, Middle East, Africa countries: 2G GSM: 900/1800 MHz / 3G WCDMA: B1/B8 / 4G FDD-LTE: B1/B3/B5/B7/B8/B20 |
| Frequency Band (SA Version) | Latin America and Australia: 3G WCDMA: B1/B2/B5/B8 / 4G FDD-LTE: B1/B2/B5/B8/B28 |
| Frequency Band (A Version) | USA and Canada: 3G WCDMA: B2/B5 (1900/850) / 4G FDD-LTE: B2/B4/B12 |
| GPS Sensitivity | -167dBm |
| GPS Start Speed | Cold start 30s, Hot start 1s |
| Position Accuracy | 2.5m |
| Charging Port | 1 charging/configuring magnetic connect port |

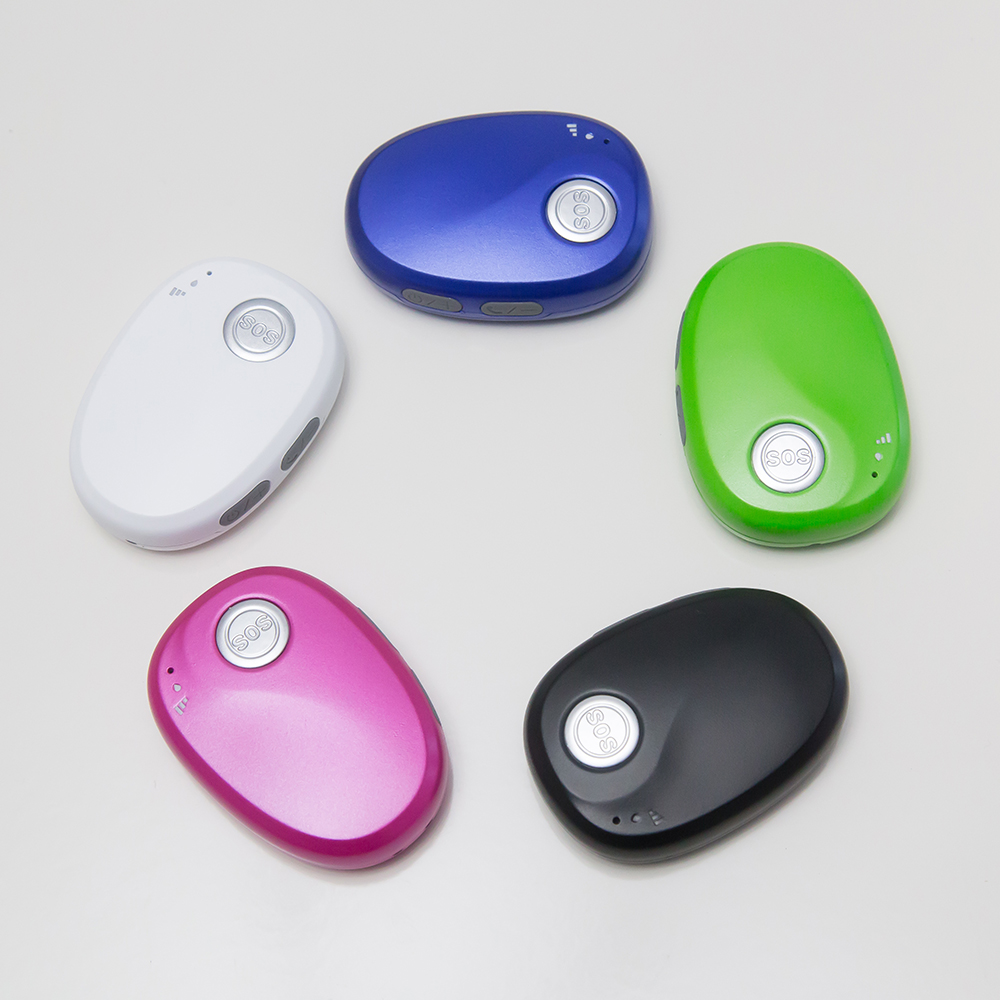

Color Variants and Device Angle Image

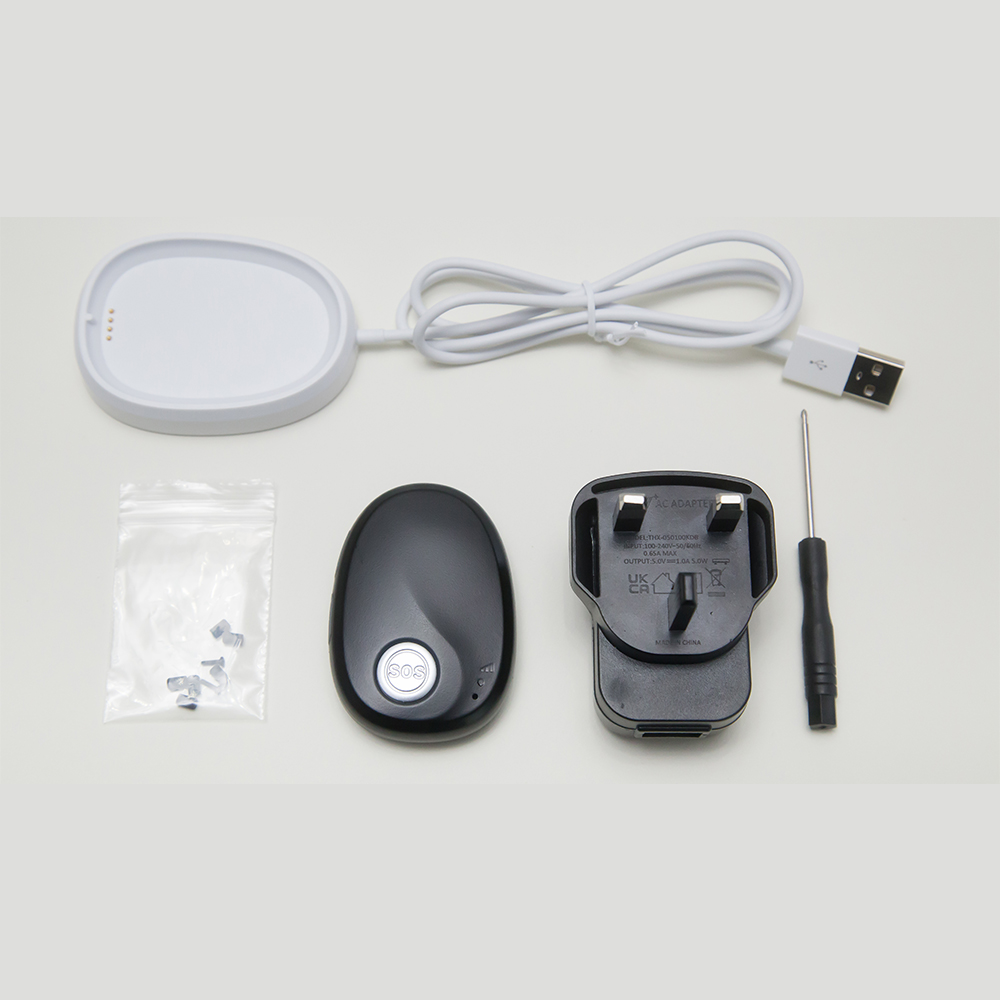

Included Accessories:
Main Unit Charger Charging Cradle Screwdriver Backup Screws
| Weight | 48 kg |
|---|---|
| Dimensions | 65 × 46 × 17 cm |
| Brand | RobexTracker |
| Color: | Black |
| Network: | 4G LTE + 2G GSM |
| Charging Method | USB port and Docking station |
| Waterproof | IP67 |
